XX1007-BD Datasheet, Doubler, MA-COM

XX1007-BD Features

  • Doubler
  • Integrated Gain, Doubler and Driver Stages
  • Self-biased Architecture
  • +21.0 dBm Output Saturated Power
  • 40.0 dBc Fundamental Suppression
  • O

PDF File Details

Part number:

XX1007-BD

Manufacturer:

MA-COM

File Size:

840.02kb

Download:

📄 Datasheet

Description:

Doubler. M/A-COM Tech’s 13.5-17.0 / 27.0-34.0 GHz GaAs MMIC doubler integrates a gain stage, passive doubler and driver amplifier onto a singl

Datasheet Preview: XX1007-BD 📥 Download PDF (840.02kb)

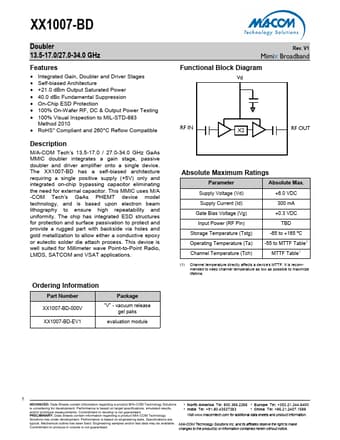

Page 2 of XX1007-BD Page 3 of XX1007-BD

XX1007-BD Application

  • Applications Ordering Information Part Number Package XX1007-BD-000V “V” - vacuum release gel paks XX1007-BD-EV1 evaluation module Function
