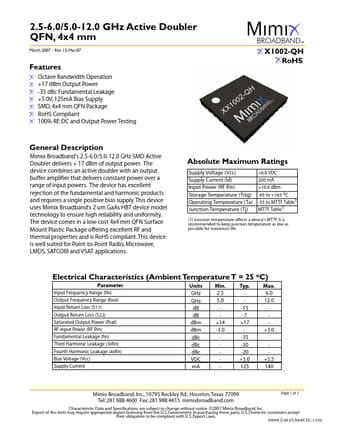

XX1002-QH Datasheet, Doubler, Mimix Broadband

XX1002-QH Features

• Doubler Octave Bandwidth Operation +17 dBm Output Power -35 dBc Fundamental Leakage +5.0V, 125mA Bias Supply SMD, 4x4 mm QFN Package RoHS Compliant 100% RF, DC and Output Power Testing General

PDF File Details

Part number:

XX1002-QH

Manufacturer:

Mimix Broadband

File Size:

1.04MB

Download:

📄 Datasheet

Description:

Active doubler. Mimix Broadband's 2.5-6.0/5.0-12.0 GHz SMD Active Doubler delivers + 17 dBm of output power. The device combines an active doubler wi

XX1002-QH Application

• Applications Absolute Maximum Ratings Supply Voltage (Vcc) Supply Current (Id) Input Power (RF Pin) Storage Temperature (Tstg) Operating Temperatu
