G24101MK, 100/1000 BASE-T TRANSFORMER MODULES

M-TEK http://www.mag-tek.com.tw 100/1000 BASE-T TRANSFORMER MODULES ) Design For Long Hual Gigabit Ethernet 100/1000 BASE-Tx Full Duplex Applicatio.

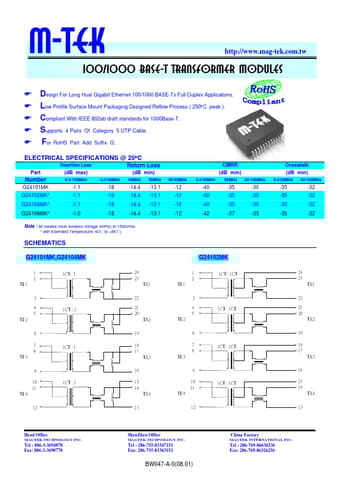

datasheet Preview Page 1 from Datasheet4u.com

G24101MK-MAGTEK.pdf

G24101MK Datasheet Preview — Preview of G24101MK PDF

Datasheet Details

Part number:

G24101MK

Manufacturer:

MAGTEK

File Size:

146.13 KB

Description:

100/1000 BASE-T TRANSFORMER MODULES

Applications

* ) Low Profile Surface Mount Packaging Designed Reflow Process ( 250°C peak ). ) Compliant With IEEE 802ab draft standards for 1000Base-T. ) Supports 4 Pairs Of Category 5 UTP Cable. ) For RoHS Part Add Suffix G. ELECTRICAL SPECIFICATIONS @ 25°C Insertion Loss Return Loss Part (dB max) (dB min)
