G24104MK Datasheet - MAGTEK

G24104MK 100/1000 BASE-T TRANSFORMER MODULES

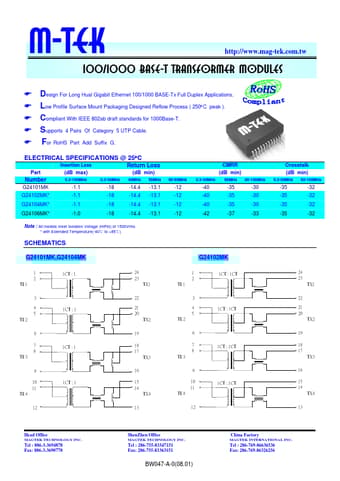

M-TEK http://www.mag-tek.com.tw 100/1000 BASE-T TRANSFORMER MODULES ) Design For Long Hual Gigabit Ethernet 100/1000 BASE-Tx Full Duplex Applications. ) Low Profile Surface Mount Packaging Designed Reflow Process ( 250°C peak ). ) Compliant With IEEE 802ab draft standards for 1000Base-T. ) Supports 4 Pairs Of Category 5 UTP Cable. ) For RoHS Part Add Suffix G. ELECTRICAL SPECIFICATIONS @ 25°C Insertion Loss Return Loss Part (dB max) (dB min) Number 0.3-100MHz 0.3-30MHz 40MHz 50MHz G2.
