MX1025D

Low Side GaN and MOSFET Driver

MX1025D Features

* undervoltage lockout (UVLO) and overtemperature protection (OTP) to ensure the device is not damaged in overload or fault conditions. Features

* 1.25ns typical minimum input pulse width

* 2.5ns typical rising propagation delay

* 2.7ns typical falling propagation delay

MX1025D General Description

The MX1025D is a single channel low-side enhancementmode GaN FET and logic-level MOSFET driver for high switching frequency applications. Narrow pulse width capability, fast switching specification, and small pulse distortion combine to significantly enhance LiDAR, ToF, and Power Converter performan.

MX1025D Datasheet (596.49 KB)

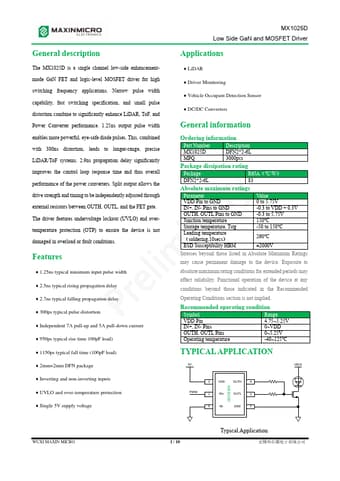

Preview of MX1025D PDF

Datasheet Details

Part number:

MX1025D

Manufacturer:

MAXINMICRO

File Size:

596.49 KB

Description:

Low side gan and mosfet driver.
