MX1110T - High Precision CC/CV Primary-Side Power Controller

Product Overview

MAXINMICRO

Datasheet Details

Part number	MX1110T
Manufacturer	MAXINMICRO
File Size	580.71 KB
Description	High Precision CC/CV Primary-Side Power Controller
Datasheet	MX1110T Datasheet

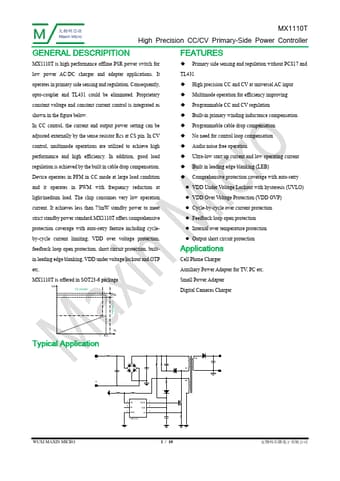

Additional preview pages of the MX1110T datasheet.

Product details

Description

MX1110T SOT23-6，Halogen-free，RoHS Package dissipation rating Package RθJA（℃/W） SOT23-6 200 Note: Drain Pin Connected to 200mm2 PCB copper clad.Absolute maximum ratings Parameter Value VDD Voltage 30V FB Input Voltage -0.3 to 7V CS Input Voltage -0.3 to 7V Min/Max Operating Junction Temperature TJ -40 to 150℃ Min/Max Storage Temperature TSTG ESD(HBM) -55 to 150℃ ±2kV Lead Temperature (Soldering, 10secs) 260℃ Note: stresses beyond those listed under “absolute maximum rati

Features

MX1110T is high performance offline PSR power switch for.
Primary side sensing and regulation without PC817 and low power AC/DC charger and adapter.
