MX11 STEP MOTOR

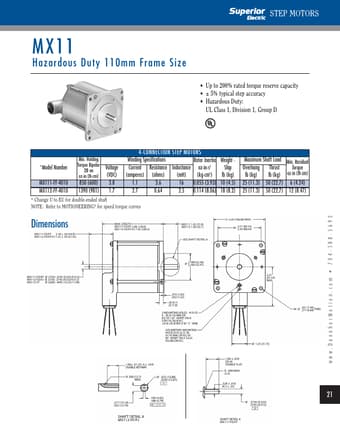

STEP MOTORS MX11 Hazardous Duty 110mm Frame Size Up to 200% rated torque reserve capacity ± 5% typical step accuracy Hazardous Duty: UL Class 1, Division 1, Group D Model Number MX111-FF-401U MX112-FF-401U Min. Holding Torque Bipolar 2Ø on oz-in (N-cm) 850 (600) 1390 (981) Voltage (VDC) 3.8 1.7 4-CONNECTION STEP MOTORS Winding Specifications Rotor Inertia Weight - Current Resistance Inductance oz-in-s2 Ship (amperes) (ohms) (mH) (kg-cm2) lb (kg) 1.1 3..

MX11-SuperiorElectric.pdf

MX11 Datasheet Preview — Preview of MX11 PDF

Datasheet Details

Part number:

MX11

Manufacturer:

Superior Electric

File Size:

308.49 KB

Description:

Step motor.
