MXL241SF

CABLE INTEGRATED RECEIVER

MXL241SF Features

* Wide tuning range from 44 to 1002 MHz

* OOB tuning range of 70 to 130MHz

* Single RF input pin for all bands

* Integrated channel filtering requiring no external SAW filters

* Programmable channel bandwidths of 6 or 8MHz

* Loopthrough output function

MXL241SF General Description

The MxL241SF is a single-chip integrated tuner and demodulator receiver IC targeting all global digital cable standards (ITU-T J.83 Annex A [DVB-C], Annex B [US Cable] and Annex C). The MxL241SF can also receive and demodulate OOB FDC signals without FEC processing. The interface complies with the o.

MXL241SF Datasheet (393.30 KB)

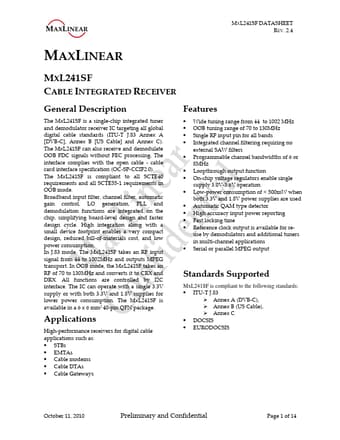

Preview of MXL241SF PDF

Datasheet Details

Part number:

MXL241SF

Manufacturer:

MAXLINEAR

File Size:

393.30 KB

Description:

Cable integrated receiver.
