MXL214C

Full Spectrum Capture Cable Receiver SoC

MXL214C General Description

The MxL214C is a gateway front-end System on a Chip (SoC) that supports four downstream DOCSIS channels and four video channels. The MxL214C targets DOCSIS 2.0/3.0 Video Gateway designs. The MxL214C IC captures the full 1GHz cable bandwidth, and can tune to any eight channels in the cable spectrum. .

MXL214C Datasheet (635.79 KB)

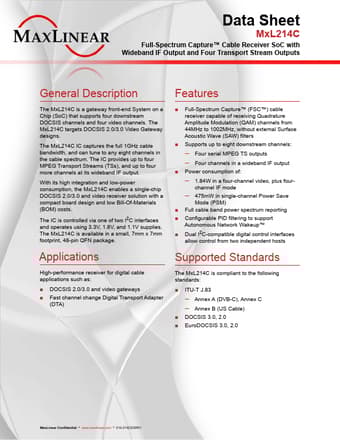

Preview of MXL214C PDF

Datasheet Details

Part number:

MXL214C

Manufacturer:

MAXLINEAR

File Size:

635.79 KB

Description:

Full spectrum capture cable receiver soc.
