MXL301RF

SILICON IC TUNER

MXL301RF Features

*

* Tuning range from 44MHz to 1002MHz

* Integrated channel filtering requiring no  external SAW filters for digital applications

* On‐chip 90 dB gain

* On‐chip 107‐dB gain control range with  single AGC  On‐chip broadband power detector

* Low power consu

MXL301RF General Description

MxL301RF is a highly integrated low‐power  silicon tuner IC targeting at all global analog  (NTSC, PAL, SECAM)  and digital cable  standards (ITU‐T J.83 Annexes A and C [DVB‐  C] and Annex B [US Cable], DOCSIS, and  EURODOCSIS) as well as digital terrestrial  reception standards (DVB‐T/H, ATSC, ISDB.

MXL301RF Datasheet (213.40 KB)

Rating: 1 ★ (4 votes)

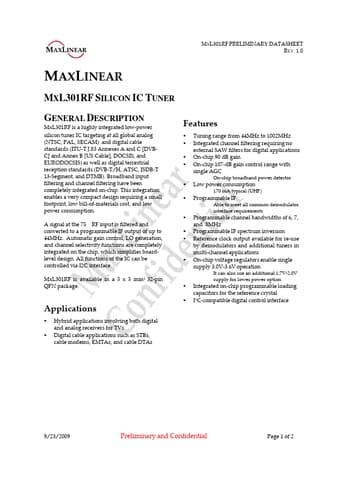

Preview of MXL301RF PDF

Datasheet Details

Part number:

MXL301RF

Manufacturer:

MAXLINEAR

File Size:

213.40 KB

Description:

Silicon ic tuner.
