1N4946GP - 1 Amp Fast Recovery Rectifier

Product Overview

MCC

Part number	1N4946GP
Manufacturer	MCC
File Size	655.18 KB
Description	1 Amp Fast Recovery Rectifier
Datasheet	1N4946GP Datasheet
Note	This datasheet PDF includes multiple part numbers: 1N4946GP, 1N4942GP. Please refer to the document for exact specifications by model.

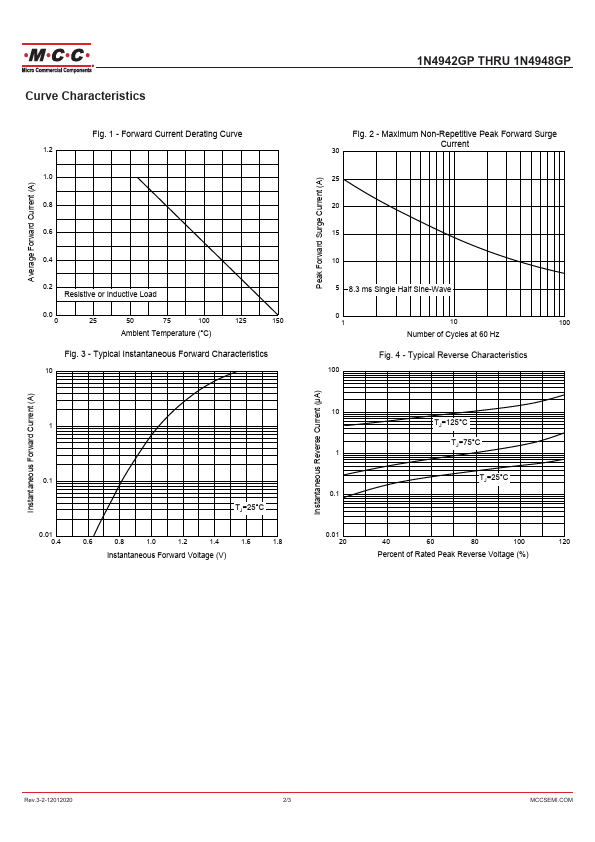

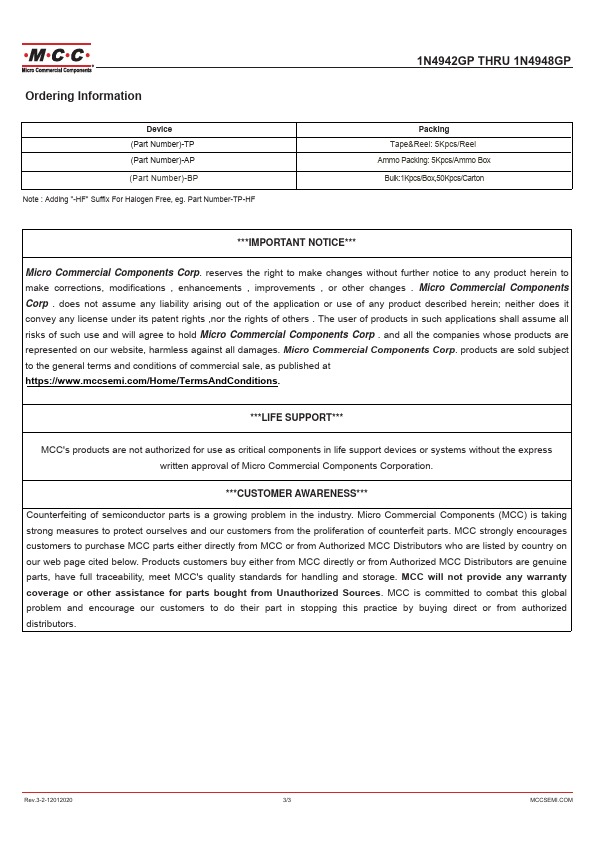

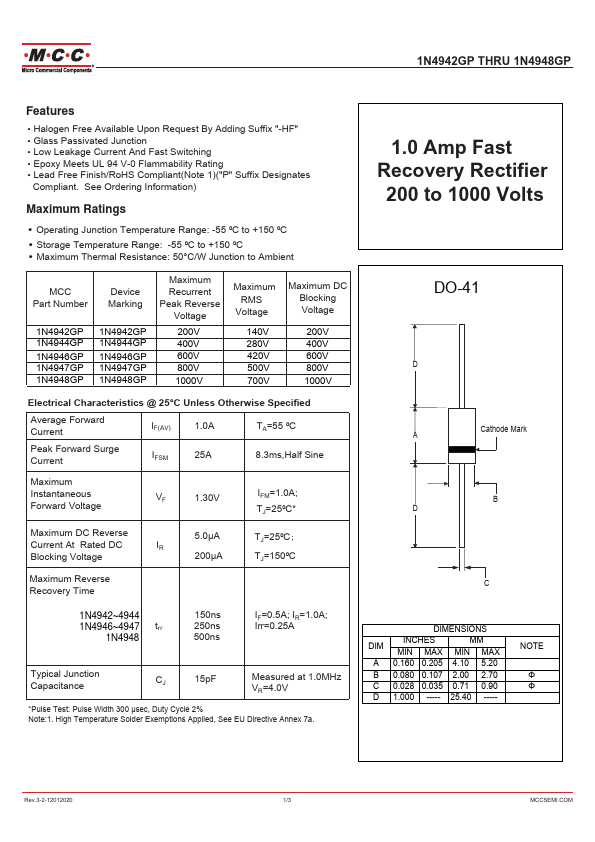

Additional preview pages of the 1N4946GP datasheet.

Halogen Free Available Upon Request By Adding Suffix "-HF".
Glass Passivated Junction.
Low Leakage Current And Fast Switching.
Epoxy Meets UL 94 V-0 Flammability Rating.
Lead Free Finish/RoHS Compliant(Note 1)("P" Suffix Designates Compliant. See Ordering Information) Maximum Ratings.
2SHUDWLQJ-.
