2A04 - 2 Amp Silicon Rectifier

Product Overview

MCC

📥 Download Datasheet

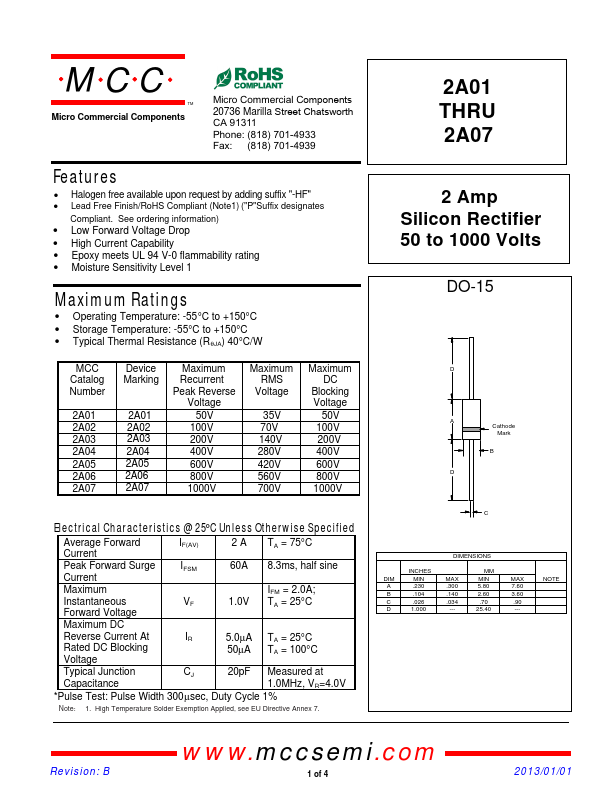

2A04 2 Amp Silicon Rectifier by MCC - Datasheet Preview — Datasheet preview – 2A04

Datasheet Details

Part number	2A04
Manufacturer	MCC
File Size	414.54 KB
Description	2 Amp Silicon Rectifier
Datasheet	2A01_MCC.pdf
Note	This datasheet PDF includes multiple part numbers: 2A04, 2A01. Please refer to the document for exact specifications by model.

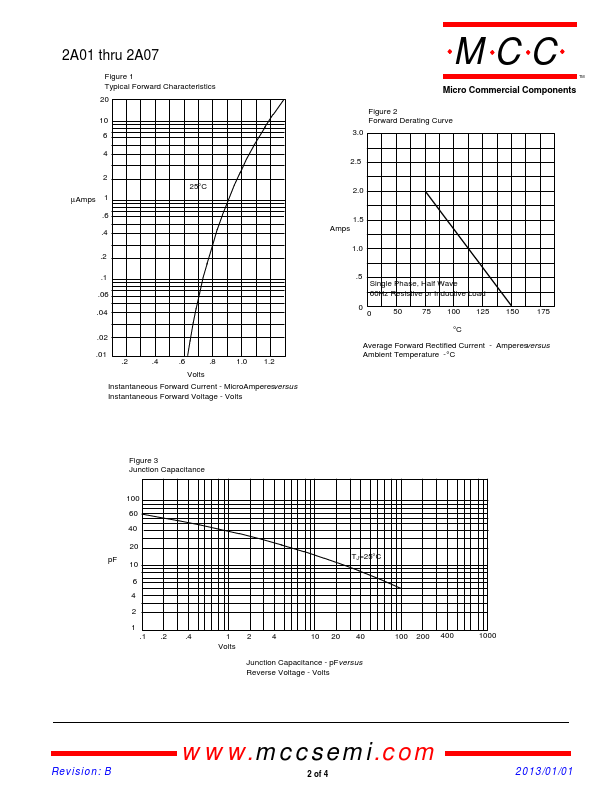

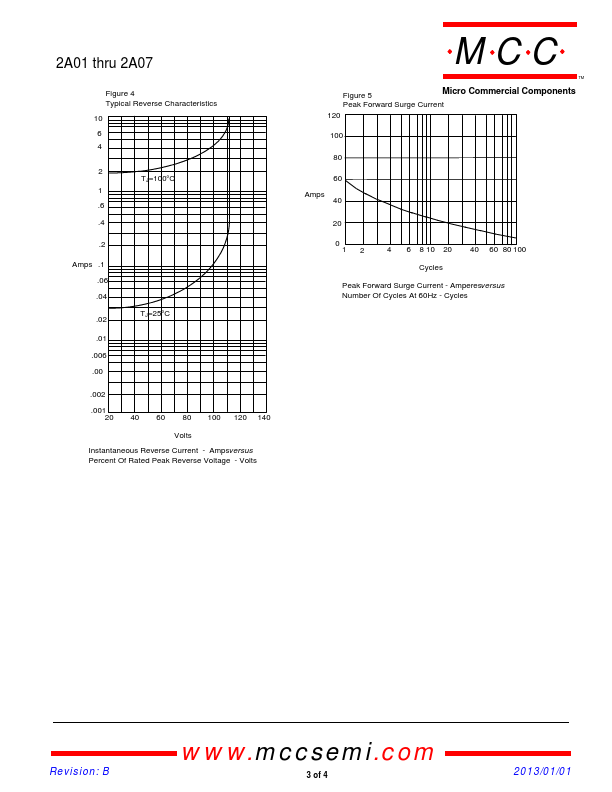

Additional preview pages of the 2A04 datasheet.

Product details

Features

Halogen free available upon request by adding suffix "-HF".
Lead Free Finish/RoHS Compliant (Note1) ("P"Suffix designates Compliant. See ordering information).
Low Forward Voltage Drop.
High Current Capability.
Epoxy meets UL 94 V-0 flammability rating.
Moisture Sensitivity Level 1 Maximum Ratings.
Operating Temperature: -55°C to +150°C.
Storage Temperature: -55°C to +150°C.
Typical Thermal Resistance (RθJA) 40°C/.
