30SQ045 - Rectifier

MCC

📥 Download Datasheet

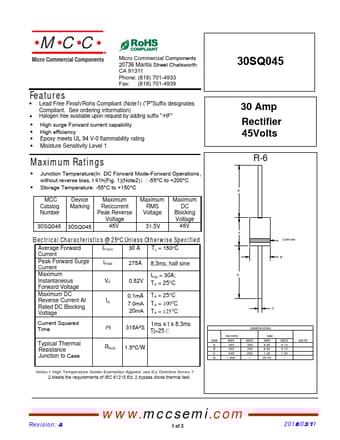

30SQ045 Datasheet Preview — Preview of 30SQ045 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: 30SQ045
Manufacturer: MCC
File Size: 365.65 KB
Datasheet: 30SQ045-MCC.pdf
Description: Rectifier

30SQ045 Product details

Features

Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information).
Halogen free available upon request by adding suffix "-HF".
High surge Forward current capability.
High efficiency.
Epoxy meets UL 94 V-0 flammability rating.
Moisture Sensitivity Level 1 Maximum Ratings.
Junction Temperature(In DC Forward Mode-Forward Operations， without reverse bias, t ≤1h(Fig. 1)(Note2)）: -55°C to +200°C.
