30SQ050 - Trench Schottky Barrier Rectifiers

Datasheet Summary

Features

  • The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Guardring for overvoltage protection Low forward voltage High forward surge current capability High temperature soldering guaranteed 260℃/10 seconds at terminals 0.360(9.1) 0.340(8.6) 0.054(1.38) 0.046(1.18) 0.945 (24.0) MIN. 0.360(9.1) 0.340(8.6) 0.945 (24.0) MIN.

📥 Download Datasheet

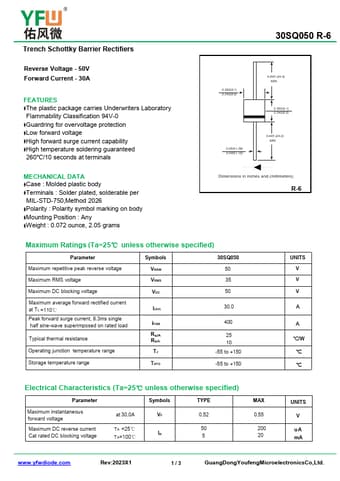

Datasheet preview – 30SQ050

Datasheet Details

Part number 30SQ050
Manufacturer YFW
File Size 789.93 KB
Description Trench Schottky Barrier Rectifiers
Datasheet download datasheet 30SQ050 Datasheet
Additional preview pages of the 30SQ050 datasheet.

📁 Similar Datasheet

  • 30SQ045 - Rectifier (MCC)
  • 30SQ045-1 - SCHOTTKY BARRIER RECTIFIER (SMC Diode)
  • 30S - 3 AMP MEDIUM POWER SILICON RECTIFIER DIODES (Microsemi Corporation)
  • 30S1 - 3 AMP MEDIUM POWER SILICON RECTIFIER DIODES (Microsemi Corporation)
  • 30S10 - 3 AMP MEDIUM POWER SILICON RECTIFIER DIODES (Microsemi Corporation)
  • 30S2 - 3 AMP MEDIUM POWER SILICON RECTIFIER DIODES (Microsemi Corporation)
  • 30S3 - 3 AMP MEDIUM POWER SILICON RECTIFIER DIODES (Microsemi Corporation)
  • 30S4 - 3 AMP MEDIUM POWER SILICON RECTIFIER DIODES (Microsemi Corporation)
  • 30S5 - 3 AMP MEDIUM POWER SILICON RECTIFIER DIODES (Microsemi Corporation)
  • 30S6 - 3 AMP MEDIUM POWER SILICON RECTIFIER DIODES (Microsemi Corporation)
Other Datasheets by YFW

    Full PDF Text Transcription

    Click to expand full text
    Trench Schottky Barrier Rectifiers 30SQ050 R-6 Reverse Voltage - 50V Forward Current - 30A FEATURES The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Guardring for overvoltage protection Low forward voltage High forward surge current capability High temperature soldering guaranteed 260℃/10 seconds at terminals 0.360(9.1) 0.340(8.6) 0.054(1.38) 0.046(1.18) 0.945 (24.0) MIN. 0.360(9.1) 0.340(8.6) 0.945 (24.0) MIN. MECHANICAL DATA Case : Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.072 ounce, 2.
