30SQ045-1 SCHOTTKY BARRIER RECTIFIER

SMC Diode

30SQ045-1 Description

30SQ045-1 Technical Data Data Sheet N2384, Rev.- 30SQ045-1 SCHOTTKY BARRIER RECTIFIER .

30SQ045-1 Features

* Super-high speed & low noise switching
* Low voltage drop
* Terminals finish: Tin Lead-free plated
* This is a Pb
* Free Device
* All SMC parts are traceable to the wafer lot R-6

30SQ045-1 Applications

* DC-DC converters
* AC adapter
* High frequency rectification circuit
* Bypass diodes Maximum Ratings(limiting values, at 25 °C unless otherwise specified) Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Cu

📥 Download Datasheet

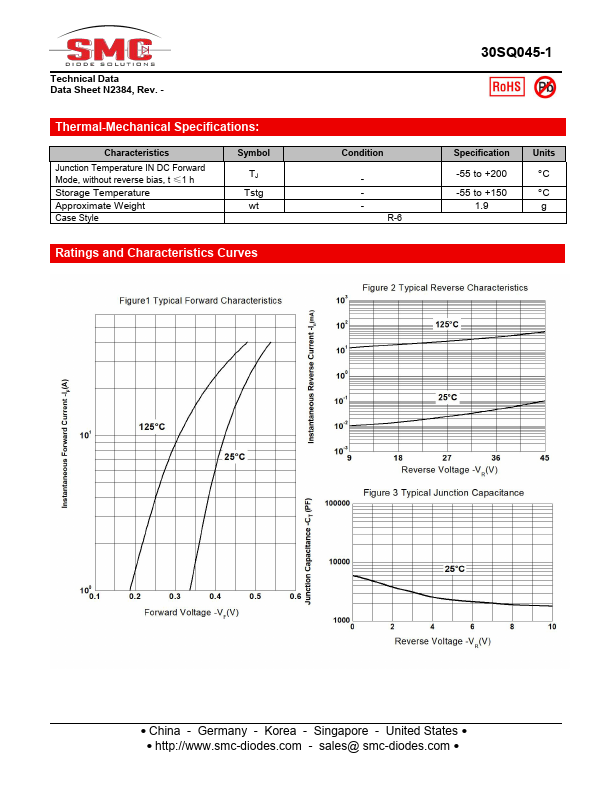

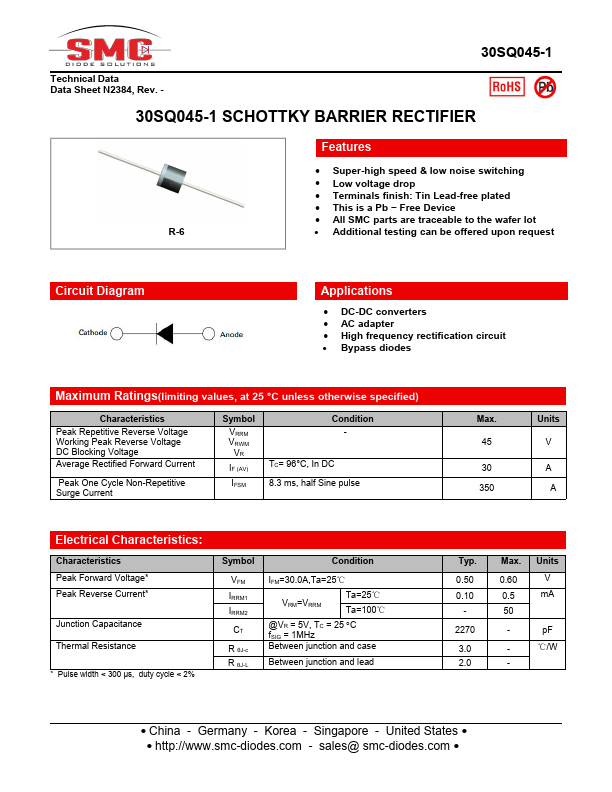

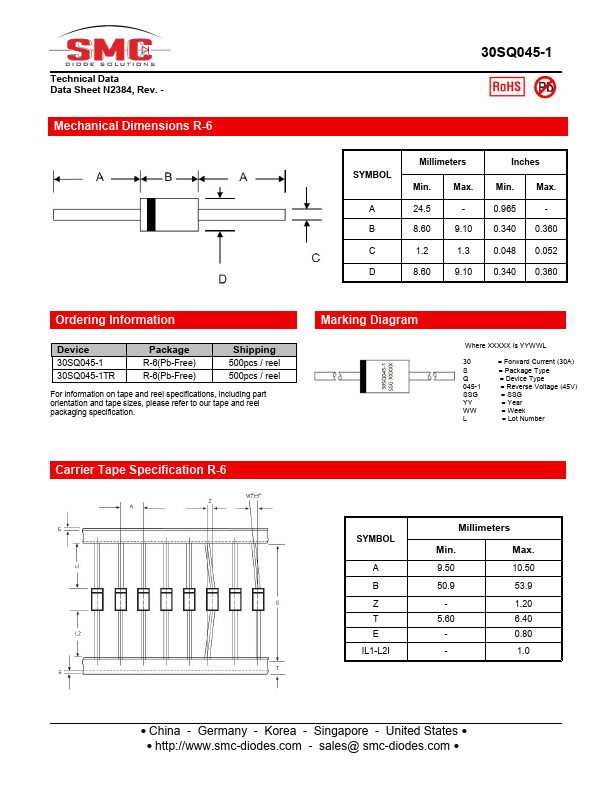

30SQ045-1 Datasheet Preview — Preview of 30SQ045-1 PDF

Datasheet Details

Part number: 30SQ045-1
Manufacturer: SMC Diode
File Size: 435.67 KB
Datasheet: 30SQ045-1-SMCDiode.pdf
Description: SCHOTTKY BARRIER RECTIFIER
