BY133 - 1 Amp Rectifier

Datasheet Summary

Features

  • Halogen free available upon request by adding suffix "-HF".
  • Low Current Leakage and Low Cost.
  • Lead Free Finish/RoHS Compliant (Note1)("P"Suffix designates Compliant. See ordering information).
  • Epoxy meets UL 94 V-0 flammability rating.
  • Moisture Sensitivity Level 1 Maximum Ratings.
  • Operating Temperature: -55°C to +150°C.
  • Storage Temperature: -55°C to +150°C.
  • Typical Thermal Resistance: 25°C/W Junction to Lead at 0.375" L.

📥 Download Datasheet

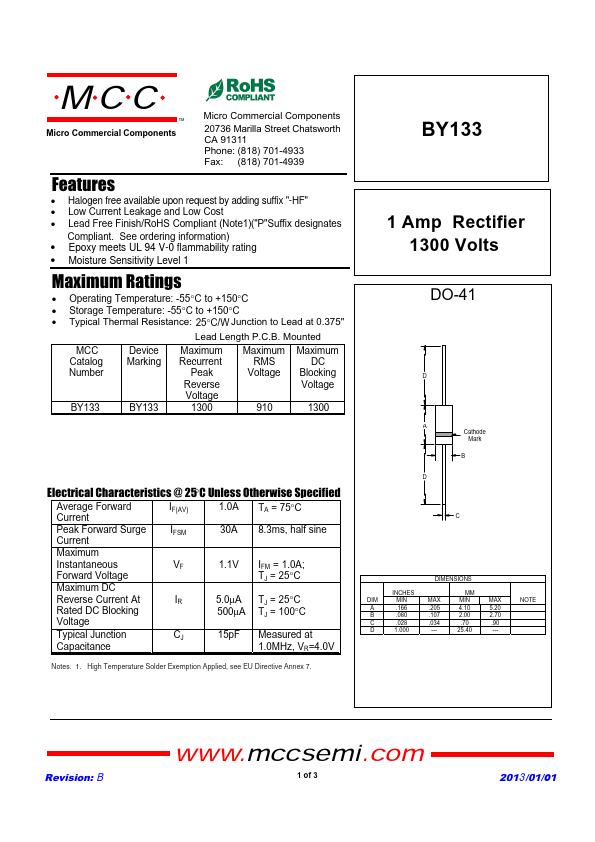

Datasheet preview – BY133

Datasheet Details

Part number BY133
Manufacturer MCC
File Size 221.08 KB
Description 1 Amp Rectifier
Datasheet download datasheet BY133 Datasheet

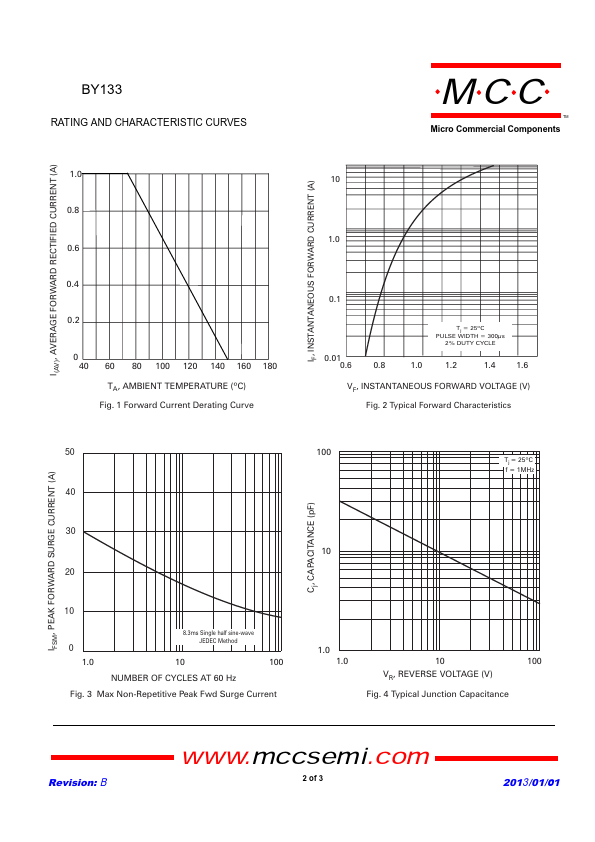

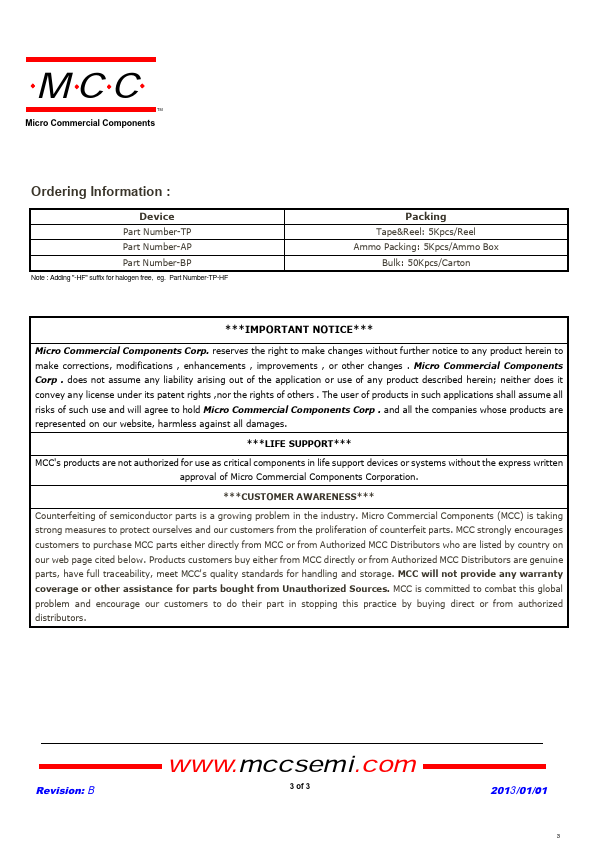

Additional preview pages of the BY133 datasheet.

📁 Similar Datasheet

  • BY133 - PLASTIC SILICON RECTIFIERS (PAN JIT)
  • BY133 - Sillicon Rectifier (UPM)
  • BY133 - GENERAL PURPOSE RECTIFIER (MEI SEMI)
  • BY133 - 1.0A Miniature Rectifier (SEP ELECTRONIC)
  • BY133 - Silicon Rectifiers (Diotec Semiconductor)
  • BY133 - SILICON RECTIFIER DIODES (EIC)
  • BY133 - AXIAL LEADED RECTIFIER DIODE (Sunmate)
  • BY133 - 1.0 SILICON RECTIFIER (SMC Diode)
  • BY133 - 1.0A HIGH VOLTAGE STANDARD DIODE (WON-TOP)
  • BY133 - General Purpose Silicon Rectifier (Luguang Electronic)
Other Datasheets by MCC
  • BY133GP - Glass Passivated Rectifier

Full PDF Text Transcription

Click to expand full text
MCC TM Micro Commercial Components Micro Commercial Components 20736 Marilla Street Chatsworth    !"# $ %    !"# Features • Halogen free available upon request by adding suffix "-HF" • Low Current Leakage and Low Cost • Lead Free Finish/RoHS Compliant (Note1)("P"Suffix designates Compliant. See ordering information) • Epoxy meets UL 94 V-0 flammability rating • Moisture Sensitivity Level 1 Maximum Ratings • Operating Temperature: -55°C to +150°C • Storage Temperature: -55°C to +150°C • Typical Thermal Resistance: 25°C/W Junction to Lead at 0.375" Lead Length P.C.B.
