DTA143EKA - PNP Digital Transistor

MCC

📥 Download Datasheet

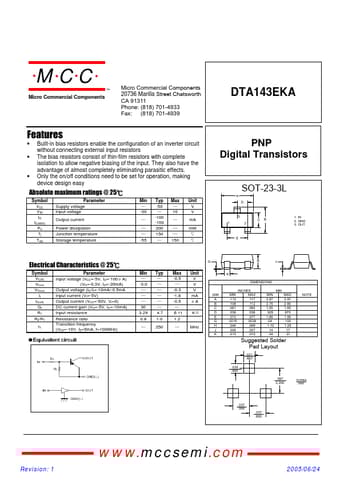

DTA143EKA Datasheet Preview — Preview of DTA143EKA PDF

datasheet Preview Page 2

Datasheet Details

Part number	DTA143EKA
Manufacturer	MCC
File Size	462.55 KB
Description	PNP Digital Transistor
Datasheet	DTA143EKA-MCC.pdf

DTA143EKA Product details

Features

Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors.
The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
Only the on/off conditions need to be set for operation, making device design easy Absolute maximum ratings @ 25℃ Symbol VCC VIN IO IC(MAX) Pd Tj Tstg Param.
