FR3KB, FR3AB 3 Amp Fast Recovery Rectifier

FR3KB Description

FR3AB THRU FR3MB .
1 Cathode Simplified Outline 2 Anode 1 MCC 2 XXXX XXXX = Marking Code Graphic Symbol 1 2 Note: 1.

FR3KB Features

* Halogen Free. “Green” Device (Note 1)
* Fast Reverse Recovery Time
* Glass Passivated Chip Junction
* Epoxy Meets UL 94 V-0 Flammability Rating
* Moisture Sensitivity Level 1
* Lead Free Finish/RoHS Compliant (Note 2)("P" Suffix Designates RoHS Compl

FR3KB Applications

* shall assume all risks of such use and will agree to hold Micro Commercial Components Corp . and all the companies whose products are represented on our website, harmless against all damages. Micro Commercial Components Corp. products are sold subject to the general terms and conditions of commercia

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FR3KB, FR3AB. Please refer to the document for exact specifications by model.

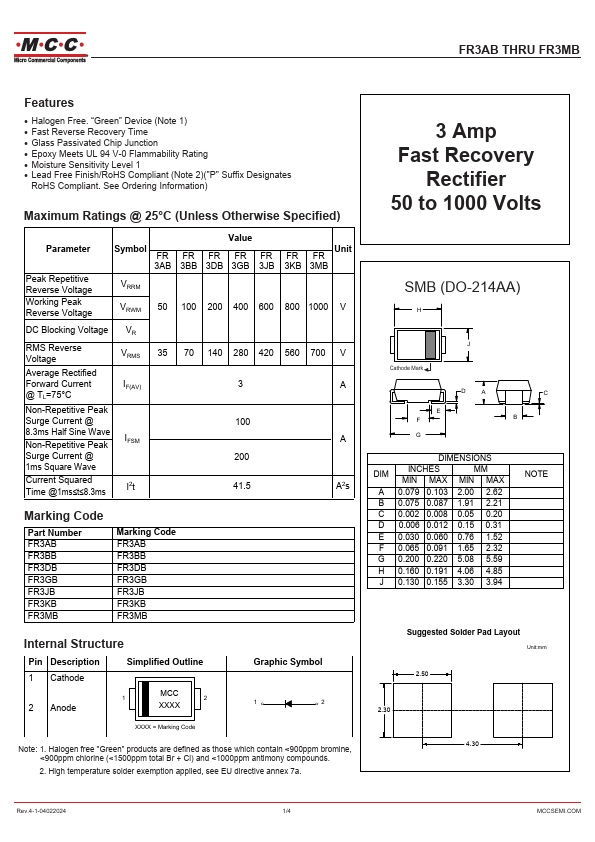

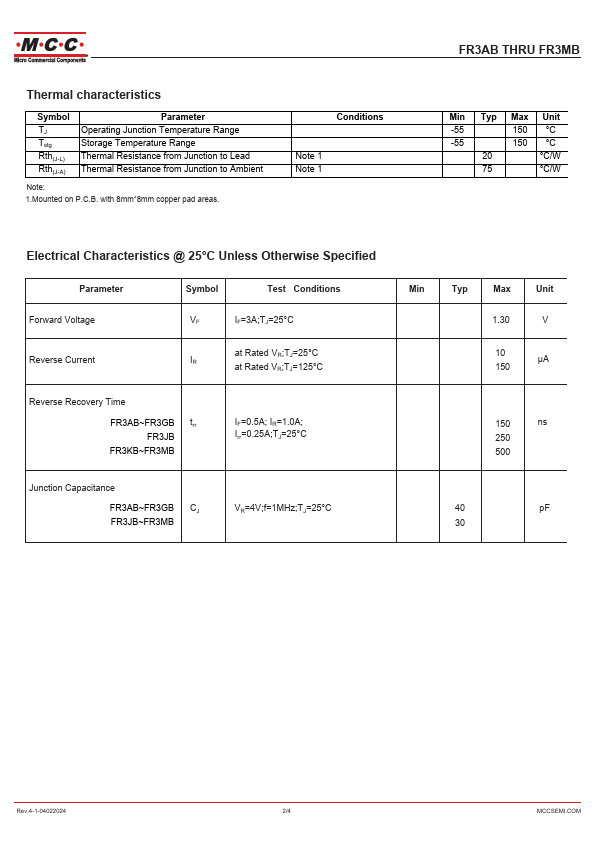

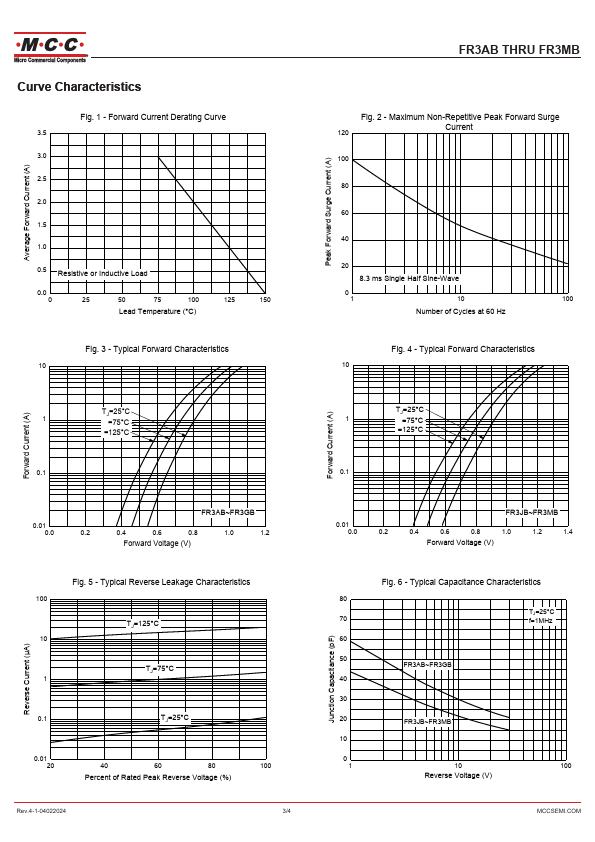

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FR3KB, FR3AB
Manufacturer
MCC
File Size
941.50 KB
Datasheet
FR3AB_MCC.pdf
Description
3 Amp Fast Recovery Rectifier
Note
This datasheet PDF includes multiple part numbers: FR3KB, FR3AB.
Please refer to the document for exact specifications by model.
