KSD1616-L - NPN Silicon Epitaxial Transistors

Product Overview

MCC

Part number	KSD1616-L
Manufacturer	MCC
File Size	260.47 KB
Description	NPN Silicon Epitaxial Transistors
Datasheet	KSD1616-L Datasheet
Note	This datasheet PDF includes multiple part numbers: KSD1616-L, KSD1616-Y. Please refer to the document for exact specifications by model.

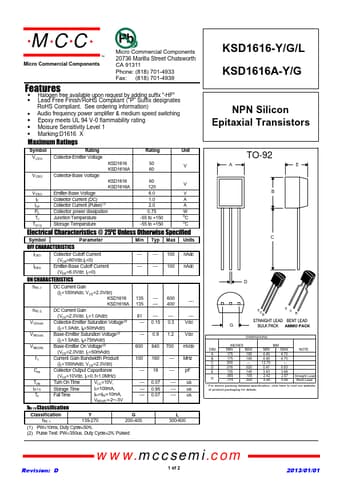

Additional preview pages of the KSD1616-L datasheet.

Halogen free available upon request by adding suffix "-HF".
Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information).
Audio frequency power amplifier & medium speed switching.
Epoxy meets UL 94 V-0 flammability rating.
Moisure Sensitivity Level 1.
Marking:D1616 X Maximum Ratings Symbol Rating Rating Unit VCEO Collector-Emitter Voltage KSD1616 KSD1616A 50 60 V VCBO Collector-Base Voltage KSD1.
