KSD1021 Datasheet - Fairchild Semiconductor

KSD1021 Audio Frequency Power Amplifier

KSD1021 KSD1021 Audio Frequency Power Amplifier Complement to KSB811 Collector Current : IC=1A Collector Dissipation : PC=350mW 1 TO-92S 1.Emitter 2. Collector 3. Base NPN Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Junction Temperature Storage Temperature Ratin.

KSD1021_FairchildSemiconductor.pdf

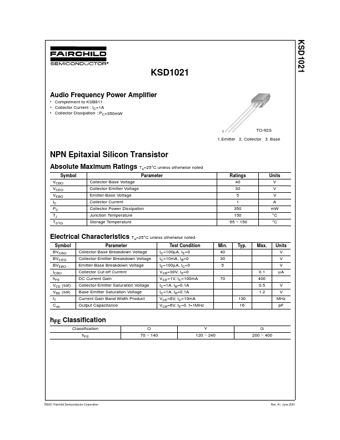

Preview of KSD1021 PDF
KSD1021 Datasheet Preview Page 2 KSD1021 Datasheet Preview Page 3

Datasheet Details

Part number:

KSD1021

Manufacturer:

Fairchild Semiconductor

File Size:

41.80 KB

Description:

Audio frequency power amplifier.
