KSD1221 Datasheet - Fairchild Semiconductor

KSD1221 Low Frequency Power Amplifier

KSD1221 KSD1221 Low Frequency Power Amplifier Low Collector-Emitter Saturation Voltage Complement to KSB906 1 I-PACK 1. Base 2. Collector 3. Emitter NPN Epitaxial Silicon Transistor Absolute Maximum Ratings TC=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC IB PC PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Base Current Collector Dissipation (TC=25°C) Collector Dissipation (Ta=25°C) Junction Temperature.

KSD1221_FairchildSemiconductor.pdf

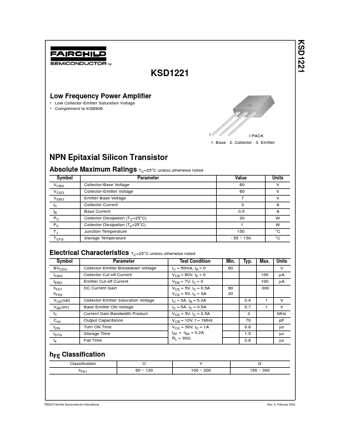

Preview of KSD1221 PDF
KSD1221 Datasheet Preview Page 2 KSD1221 Datasheet Preview Page 3

Datasheet Details

Part number:

KSD1221

Manufacturer:

Fairchild Semiconductor

File Size:

39.18 KB

Description:

Low frequency power amplifier.
