KSD1020 Audio Frequency Amplifier

KSD1020 KSD1020 Audio Frequency Amplifier Complement to KSB810 1 TO-92S 1.Emitter 2. Collector 3. Base NPN Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC ICP PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current (DC) Collector Current (Pulse) Collector Power Dissipation Junction Temperature Storage Temperature Ratings 30 25 5.0 700 1.0 350 150 -55 ~ 150 Units.

KSD1020_FairchildSemiconductor.pdf

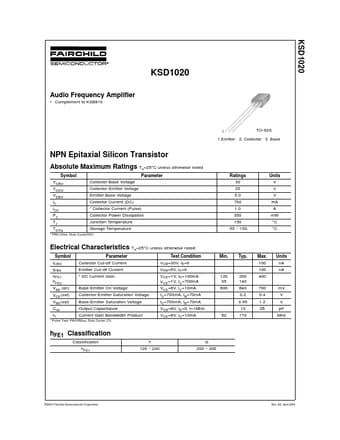

Preview of KSD1020 PDF
