MBR12035 - (MBR12020 - MBR120100) Schottky Barrier

Product Overview

MCC

📥 Download Datasheet

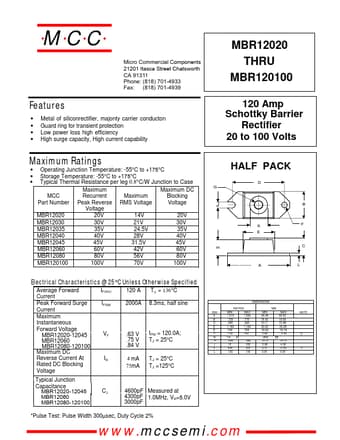

MBR12035 (MBR12020 - MBR120100) Schottky Barrier by MCC - Datasheet Preview — Datasheet preview – MBR12035

Datasheet Details

Part number	MBR12035
Manufacturer	MCC
File Size	436.57 KB
Description	(MBR12020 - MBR120100) Schottky Barrier
Datasheet	MBR12035 Datasheet
Note	This datasheet PDF includes multiple part numbers: MBR12035, MBR120100. Please refer to the document for exact specifications by model.
Additional preview pages of the MBR12035 datasheet.

Product details

Features

Metal of siliconrectifier, majonty carrier conducton Guard ring for transient protection Low power loss high efficiency High surge capacity, High current capability Maximum Ratings.
Operating Junction Temperature: -55°C to +175°C Storage Temperature: -55°C to +175°C Typical Thermal Resistance per leg 0.8°C/W Junction to Case Maximum Maximum DC MCC Recurrent Maximum Blocking Part Number Peak Reverse RMS Voltage Voltage Voltage.
