SB220L - Schottky Rectifier

Product Overview

MCC

📥 Download Datasheet

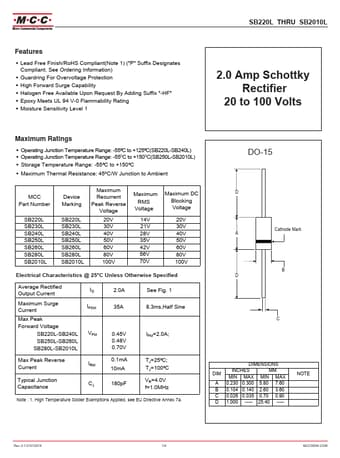

SB220L Schottky Rectifier by MCC - Datasheet Preview — Datasheet preview – SB220L

Datasheet Details

Part number	SB220L
Manufacturer	MCC
File Size	788.79 KB
Description	Schottky Rectifier
Datasheet	SB220L Datasheet
Additional preview pages of the SB220L datasheet.

Product details

Features

Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix Designates Compliant. See Ordering Information).
Guardring For Overvoltage Protection.
High Forward Surge Capability.
Halogen Free Available Upon Request By Adding Suffix "-HF".
Epoxy Meets UL 94 V-0 Flammability Rating.
Moisture Sensitivity Level 1 SB220L THRU SB2010L 2.0 Amp Schottky Rectifier 20 to 100 Volts Maximum Ratings.
Operating Junction Temperature Range: -55⁰C to +125⁰.
