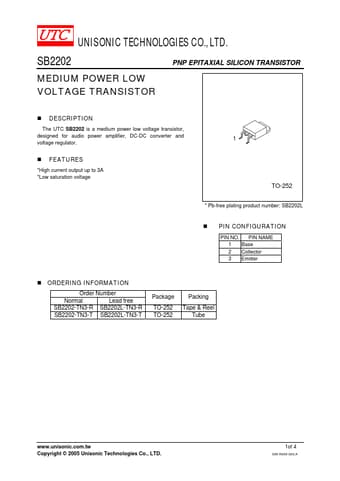

SB2202 Datasheet, Transistor, UTC

SB2202 Features

• Transistor
• High current output up to 3A
• Low saturation voltage TO-252
• Pb-free plating product number: SB2202L PIN CONFIGURATION PIN NO. PIN NAME 1 Base 2 Collector 3

PDF File Details

Part number:

SB2202

Manufacturer:

UTC

File Size:

81.56kb

Download:

📄 Datasheet

Description:

Medium power low voltage transistor. The UTC SB2202 is a medium power low voltage transistor, designed for audio power amplifier, DC-DC converter and voltage regulator.
