SI3400A - N-Channel MOSFET

Datasheet Summary

Features

  • High Dense Cell Design for Extremely Low RDS(ON).
  • Exceptional On-Resistance and Maximum DC Current Capability.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Moisture Sensitivity Level 1.
  • Halogen Free Available Upon Request By Adding Suffix "-HF".
  • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) SI3400A N-Channel MOSFET Maximum Ratings.
  • Operating Junction Temperature Range: -55°C to +15.

📥 Download Datasheet

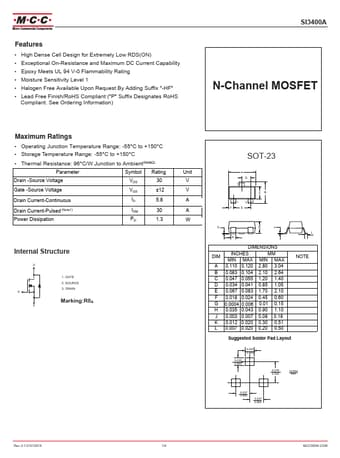

Datasheet preview – SI3400A

Datasheet Details

Part number SI3400A
Manufacturer MCC
File Size 878.88 KB
Description N-Channel MOSFET
Datasheet download datasheet SI3400A Datasheet
Additional preview pages of the SI3400A datasheet.

📁 Similar Datasheet

  • SI3400 - FULLY-INTEGRATED 802.3-COMPLIANT PD INTERFACE AND SWITCHING REGULATOR (Silicon Laboratories)
  • SI3401 - FULLY-INTEGRATED 802.3-COMPLIANT PD INTERFACE AND SWITCHING REGULATOR (Silicon Laboratories)
  • SI3401 - P-Channel MOSFET (ZHONGGUI)
  • SI3401 - P-Channel Enhancement-Mode MOSFETs (HAOHAI)
  • SI3402-B - FULLY-INTEGRATED 802.3-COMPLIANT POE PD INTERFACE AND LOW-EMI SWITCHING REGULATOR (Silicon Laboratories)
  • Si3404 - 1-Compliant POE PD Interface and High-Efficiency Switching Regulator (Skyworks)
  • Si3406 - Fully-Integrated IEEE 802.3-Compliant POE+ PD Interface and High-Efficiency Switching Regulators (Silicon Laboratories)
  • Si34061 - Fully-Integrated IEEE 802.3-Compliant POE+ PD Interface and High-Efficiency Switching Regulators (Silicon Laboratories)
  • Si34061 - POE+ PD Interface & Switching Regulators (Skyworks)
  • Si34062 - Fully-Integrated IEEE 802.3-Compliant POE+ PD Interface and High-Efficiency Switching Regulators (Silicon Laboratories)
Other Datasheets by MCC

Full PDF Text Transcription

Click to expand full text
Features • High Dense Cell Design for Extremely Low RDS(ON) • Exceptional On-Resistance and Maximum DC Current Capability • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 • Halogen Free Available Upon Request By Adding Suffix "-HF" • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) SI3400A N-Channel MOSFET Maximum Ratings • Operating Junction Temperature Range: -55°C to +150°C • Storage Temperature Range: -55°C to +150°C • Thermal Resistance: 96°C/W Junction to Ambient(Note2) Parameter Symbol Rating Unit Drain -Source Voltage VDS 30 V Gate -Source Voltage VGS ±12 V Drain Current-Continuous ID 5.8 A Drain Current-Pulsed (Note1) Power Dissipation IDM 30 A PD 1.
