SI3401 - FULLY-INTEGRATED 802.3-COMPLIANT PD INTERFACE AND SWITCHING REGULATOR

Product Overview

Silicon Laboratories

Part number	SI3401
Manufacturer	Silicon Laboratories
File Size	479.83 KB
Description	FULLY-INTEGRATED 802.3-COMPLIANT PD INTERFACE AND SWITCHING REGULATOR
Datasheet	SI3401 Datasheet
Note	This datasheet PDF includes multiple part numbers: SI3401, SI3400. Please refer to the document for exact specifications by model.

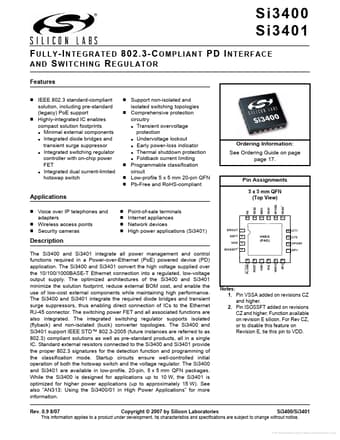

Additional preview pages of the SI3401 datasheet.

The Si3400 and Si3401 integrate all power management and control functions required in a Power-over-Ethernet (PoE) powered device (PD) application.

IEEE 802.3 standard-compliant solution, including pre-standard (legacy) PoE support Highly-integrated IC enables compact solution footprints Minimal external components Integrated diode bridges and transient surge suppressor Integrated switching regulator controller with on-chip power FET Integrated dual current-limited hotswap switch Support non-isolated and isolated switching topologies Comprehensive protection circuitry Transient overvoltage protection Undervoltage lockout Early power-loss in.
