Si34062 Datasheet - Silicon Laboratories

Si34062 Fully-Integrated IEEE 802.3-Compliant POE+ PD Interface and High-Efficiency Switching Regulators

Si3406x Family Data Sheet Fully-Integrated IEEE 802.3-Compliant POE+ PD Interface and High-Efficiency Switching Regulators with Sleep, Wake, and LED Drive The Si3406x family integrates all power management and control functions required in a Power-over-Ethernet Plus (PoE+) powered device (PD) application. These devices convert the high voltage supplied over the 10/100/1000BASE-T Ethernet connection to a regulated, low-voltage output supply. The optimized architecture of this device family minim.

Si34062 Features

* can be utilized to minimize standby current, control sleep and wake states, and provide application status information using an LED. The Si3406 is available in a low-profile, 20-pin, 5 x 5 mm QFN package, and the Si34061 and Si34062 are available in low-profile, 24-pin, 5 x 5 mm QFN packages. KEY F

Si34062 Datasheet (758.52 KB)

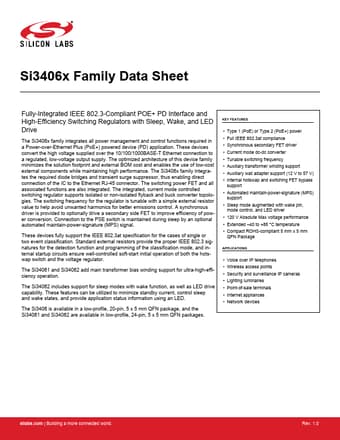

Si34062 Datasheet Preview — Preview of Si34062 PDF

Datasheet Details

Part number:

Si34062

Manufacturer:

Silicon Laboratories

File Size:

758.52 KB

Description:

Fully-integrated ieee 802.3-compliant poe+ pd interface and high-efficiency switching regulators.
