SIL05N06 - N-CHANNEL MOSFET

Datasheet Summary

Features

  • Advanced Trench MOSFET Process Technology.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Moisture Sensitivity Level 1.
  • Halogen Free Available Upon Request By Adding Suffix "-HF".
  • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) SIL05N06 N-Channel Power MOSFET Maximum Ratings.
  • Operating Junction Temperature Range: -55°C to +150°C.
  • Storage Temperature Range: -55°C to +150°C.
  • Ther.

📥 Download Datasheet

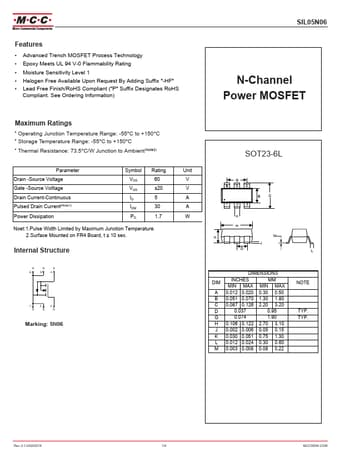

Datasheet preview – SIL05N06

Datasheet Details

Part number SIL05N06
Manufacturer MCC
File Size 734.78 KB
Description N-CHANNEL MOSFET
Datasheet download datasheet SIL05N06 Datasheet
Additional preview pages of the SIL05N06 datasheet.

📁 Similar Datasheet

Other Datasheets by MCC

Full PDF Text Transcription

Click to expand full text
Features • Advanced Trench MOSFET Process Technology • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 • Halogen Free Available Upon Request By Adding Suffix "-HF" • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) SIL05N06 N-Channel Power MOSFET Maximum Ratings • Operating Junction Temperature Range: -55°C to +150°C • Storage Temperature Range: -55°C to +150°C • Thermal Resistance: 73.5°C/W Junction to Ambient(Note2) Parameter Drain -Source Voltage Gate -Source Volltage Drain Current-Continuous Pulsed Drain Current(Note1) Power Dissipation Symbol VDS VGS ID IDM PD Rating 60 ±20 5 30 1.7 Noet:1.Pulse Width Limited by Maximum Junction Temperature. 2.Surface Mounted on FR4 Board, t ≤ 10 sec.
