SIL05-1A72-71D - Single-In-Line Reed Relays

Datasheet Summary

Description

Single-In-Line Reed Relays reduce the required space to a minimum.

Requiring only half the PCB area of the DIP or DIL series, the SIL relays offer all the advantages of Reed Technology.

High resistance coils of up to 2000 Ω at 12 VDC Breakdown voltage coil / co

Features

  • Magnetic shield available.
  • High resistance version.
  • Other coil resistances available.
  • Option with coax screen for Z=50 Ohm Impedance.

📥 Download Datasheet

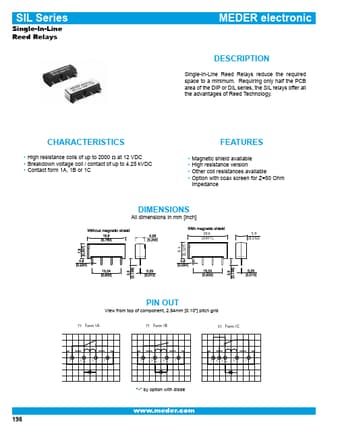

Datasheet preview – SIL05-1A72-71D

Datasheet Details

Part number SIL05-1A72-71D
Manufacturer MEDER
File Size 194.43 KB
Description Single-In-Line Reed Relays
Datasheet download datasheet SIL05-1A72-71D Datasheet
Additional preview pages of the SIL05-1A72-71D datasheet.

📁 Similar Datasheet

Other Datasheets by MEDER

Full PDF Text Transcription

Click to expand full text
SIL Series Single-In-Line Reed Relays MEDER electronic DESCRIPTION Single-In-Line Reed Relays reduce the required space to a minimum. Requiring only half the PCB area of the DIP or DIL series, the SIL relays offer all the advantages of Reed Technology. CHARACTERISTICS • High resistance coils of up to 2000 Ω at 12 VDC • Breakdown voltage coil / contact of up to 4.25 kVDC • Contact form 1A, 1B or 1C FEATURES • Magnetic shield available • High resistance version • Other coil resistances available • Option with coax screen for Z=50 Ohm Impedance DIMENSIONS All dimensions in mm [inch] 20.6 [0.811] 5.9 [0.232] 8.3 [0.327] 198 PIN OUT View from top of component, 2.54mm [0.
