SIL05N06A - N-Channel Power MOSFET

Datasheet Summary

Features

  • Advanced Trench MOSFET Process Technology.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Moisture Sensitivity Level 1.
  • Halogen Free. “Green” Device (Note 1).
  • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) SIL05N06A N-Channel Power MOSFET Maximum Ratings.
  • Operating Junction Temperature Range: -55°C to +150°C.
  • Storage Temperature Range: -55°C to +150°C.
  • Thermal Resistance: 100°.

📥 Download Datasheet

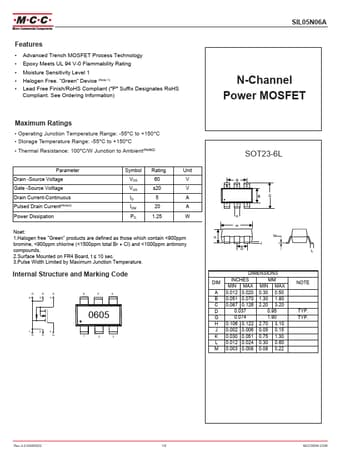

Datasheet preview – SIL05N06A

Datasheet Details

Part number SIL05N06A
Manufacturer MCC
File Size 914.99 KB
Description N-Channel Power MOSFET
Datasheet download datasheet SIL05N06A Datasheet
Additional preview pages of the SIL05N06A datasheet.

📁 Similar Datasheet

Other Datasheets by MCC

Full PDF Text Transcription

Click to expand full text
Features • Advanced Trench MOSFET Process Technology • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 • Halogen Free. “Green” Device (Note 1) • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) SIL05N06A N-Channel Power MOSFET Maximum Ratings • Operating Junction Temperature Range: -55°C to +150°C • Storage Temperature Range: -55°C to +150°C • Thermal Resistance: 100°C/W Junction to Ambient(Note2) Parameter Drain -Source Voltage Gate -Source Volltage Drain Current-Continuous Pulsed Drain Current(Note3) Power Dissipation Symbol Rating Unit VDS 60 V VGS ±20 V ID 5 A IDM 20 A PD 1.25 W Noet: 1.
