TIP32 - Silicon PNP Power Transistors

Product Overview

MCC

Part number	TIP32
Manufacturer	MCC
File Size	203.30 KB
Description	Silicon PNP Power Transistors
Datasheet	TIP32 Datasheet

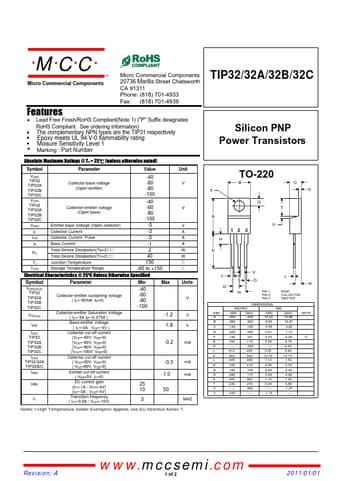

Additional preview pages of the TIP32 datasheet.

Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix designates RoHS Compliant. See ordering information).
The complementary NPN types are the TIP31 respectively.
Epoxy meets UL 94 V-0 flammability rating.
Moisure Sensitivity Level 1.
Marking : Part Number Absolute Maximum Ratings @ Ta = 25℃ (unless otherwise noted) Symbol Parameter Value VCBO TIP32 TIP32A TIP32B TIP32C Collector-base voltage (Open emitter) -40 -60 -80 -100 VCEO TIP32 TIP32A T.
