TIP3224, TIP3220 Datasheet - Vishay Intertechnology

TIP3224 Infrared Touch Panels

Each Vishay DaleĀ® touch panel has infrared LED emitters and detectors along the X * and Y * axis, forming a grid of infrared light beams across the face of the display. The first two numbers of the TIP "matrix" number specify the number of vertical beams and the last two numbers specif.

TIP3224 Features

* Fast response time

* Flexible operating modes

* User transparent

* Rugged construction

* Sealed for environmental resistance

* Immune to high or changing ambient light

* RS-232C interface

* Pre-assembled - no assembly or disassembly r

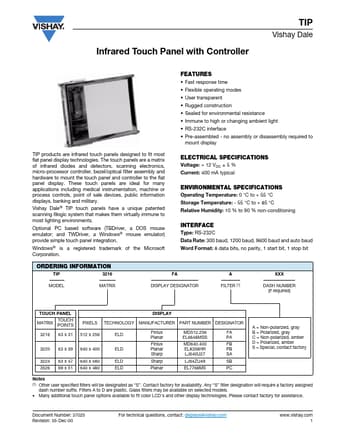

TIP3220_VishayIntertechnology.pdf

This datasheet PDF includes multiple part numbers: TIP3224, TIP3220. Please refer to the document for exact specifications by model.
