TIP3216 - Infrared Touch Panels

Product Overview

Vishay Intertechnology

Datasheet Details

Part number	TIP3216
Manufacturer	Vishay Intertechnology
File Size	124.54 KB
Description	Infrared Touch Panels
Datasheet	TIP3216 Datasheet
Note	This datasheet PDF includes multiple part numbers: TIP3216, TIP3220. Please refer to the document for exact specifications by model.

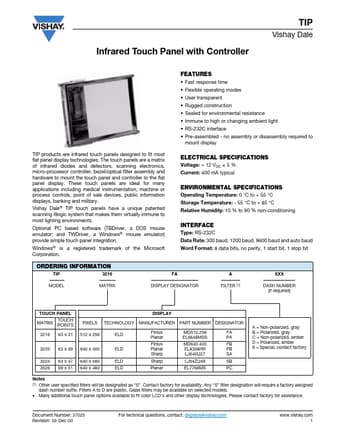

Additional preview pages of the TIP3216 datasheet.

Product details

Description

Each Vishay Dale® touch panel has infrared LED emitters and detectors along the X and Y axis, forming a grid of infrared light beams across the face of the display.

Features

Fast response time.
Flexible operating modes.
User transparent.
Rugged construction.
Sealed for environmental resistance.
Immune to high or changing ambient light.
RS-232C interface.
Pre-assembled - no assembly or disassembly required to mount display TIP products are infrared touch panels designed to fit most flat panel display technologies. The touch panels are a matrix of infrared diodes and detectors, scanning electroni.
