TPT5609 - NPN Epitaxial Silicon Transistor

Name: TPT5609
SKU: TPT5609-921295

MCC

The TPT5609 by MCC is a NPN Epitaxial Silicon Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	TPT5609
Manufacturer	MCC
File Size	374.74 KB
Description	NPN Epitaxial Silicon Transistor
Datasheet	TPT5609-MCC.pdf

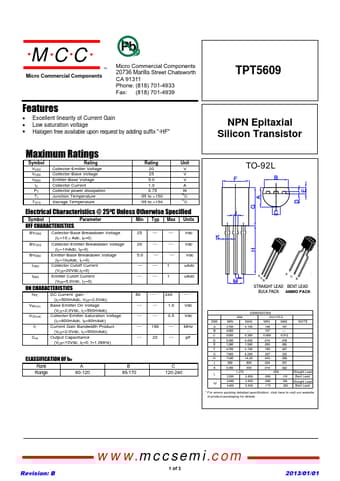

Additional preview pages of the TPT5609 datasheet.

x Excellent linearity of Current Gain x Low saturation voltage.
Halogen free available upon request by adding suffix "-HF" TPT5609 NPN Epitaxial Silicon Transistor Maximum Ratings Symbol VCEO VCBO VEBO IC PC TJ TSTG Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current Collector power dissipation Junction Temperature Storage Temperature Rating 20 25 5.0 1.0 0.75 -55 to +150 -55 to +150 Unit V V V A W OC OC Electrical Characteristics @ 25OC.
