1N4947G, 1N4942G FAST RECOVERY GLASS PASSIVATED RECTIFIERS

MDD

Description

1N4942G THRU 1N4948G FAST RECOVERY GLASS PASSIVATED RECTIFIERS Reverse Voltage - 200 to 1000 Volts Forward Current - 1.0 Ampere DO-41 0.107(2.7) 0..

📥 Download Datasheet

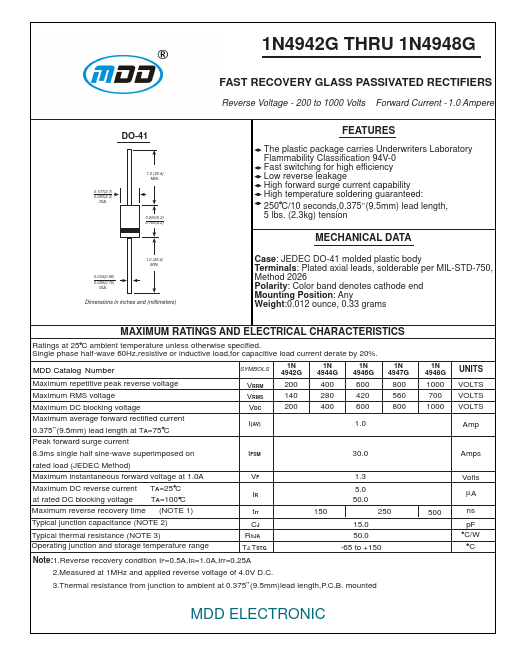

1N4947G Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N4947G, 1N4942G. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 1N4947G, 1N4942G
Manufacturer: MDD
File Size: 69.28 KB
Datasheet: 1N4942G-MDD.pdf
Description: FAST RECOVERY GLASS PASSIVATED RECTIFIERS
Note: This datasheet PDF includes multiple part numbers: 1N4947G, 1N4942G.
Please refer to the document for exact specifications by model.

Features

* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Fast switching for high efficiency Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension MECHANICAL DATA
