GS2JF, GS2AF - SURFACE MOUNT GENERAL RECTIFIER

MDD

📥 Download Datasheet

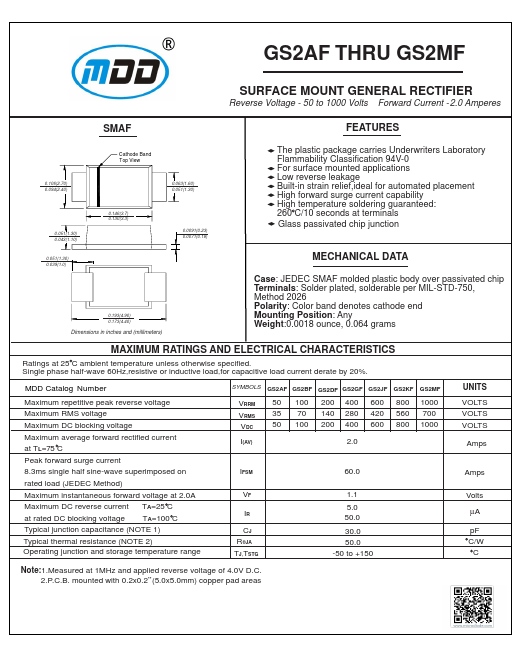

GS2JF Datasheet Preview — This datasheet PDF includes multiple part numbers: GS2JF, GS2AF. Please refer to the document for exact specifications by model.

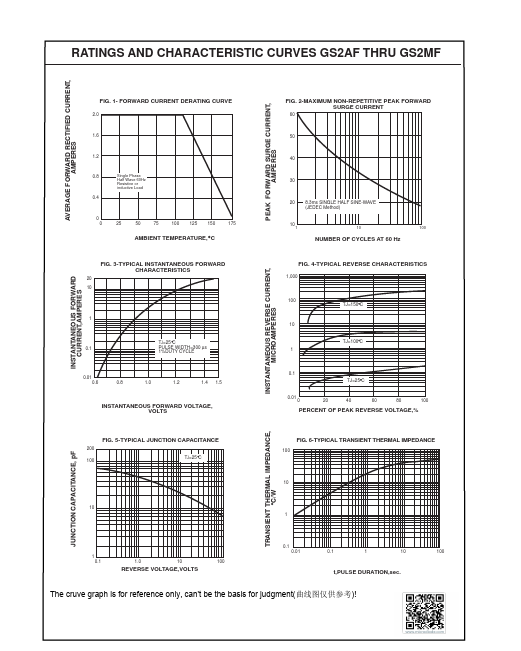

datasheet Preview Page 2

Datasheet Details

Part number	GS2JF, GS2AF
Manufacturer	MDD
File Size	624.07 KB
Description	SURFACE MOUNT GENERAL RECTIFIER
Datasheet	GS2AF-MDD.pdf
Note	This datasheet PDF includes multiple part numbers: GS2JF, GS2AF. Please refer to the document for exact specifications by model.

GS2JF Product details

Features

0.106(2.70) 0.094(2.40) 0.051(1.30) 0.043(1.10) Cathode Band Top View 0.063(1.60) 0.051(1.30) 0.146(3.7) 0.130(3.3) 0.0091(0.23) 0.0071(0.18) The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 For surface mounted.
