DIP24-1Axx-xx

(DIP Series) Molded DIP Reed Relays

DIP24-1Axx-xx Features

* High resistance option available

* SMD version available

* Diode option available

* Mercury wetted switch option available DIMENSIONS All dimensions in mm [inches] Germany # ++49-(0)7733-94870, USA # 800-870-5385 www.meder.com www.DataSheet4U.com DIP Series Mol

DIP24-1Axx-xx General Description

The DIP series is a very compact design having a low profile package and a high profile package. This series is compatible with all DIP relays. CHARACTERISTICS

* Low profile package

* Standard pin configurations

* IC-pin compatible

* 4.25 kVDC breakdown voltage for p.

DIP24-1Axx-xx Datasheet (478.78 KB)

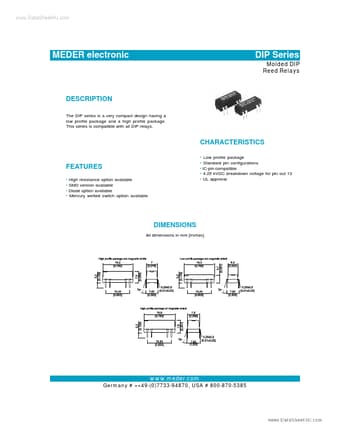

Preview of DIP24-1Axx-xx PDF

Datasheet Details

Part number:

DIP24-1Axx-xx

Manufacturer:

MEDER

File Size:

478.78 KB

Description:

(dip series) molded dip reed relays.
