SB240

SCHOTTKY BARRIER RECTIFIER

SB240 Features

* Guarding for overvoltage protection

* Low forward voltage

* Low power loss for high efficiency

* High surge capability

* High temperature soldering guaranteed: 250℃/10 seconds, 0.373” (9.5mm) lead length

* RoHS and REACH Compliance Mechanical Data

SB240 General Description

SB220 SB230 SB240 SB250 SB260 VRRM Max Recurrent Peak Reverse Voltage 20 30 40 50 60 VRMS Max RMS Voltage 14 21 28 35 42 VDC Max DC Blocking Voltage 20 30 40 50 60 I(AV) Max Average Forward Rectified Current, 0.375” (9.5mm) lead length 2.0 IFSM Peak Forward Surge Current 50 TJ,TSTG Rθ.

SB240 Datasheet (226.26 KB)

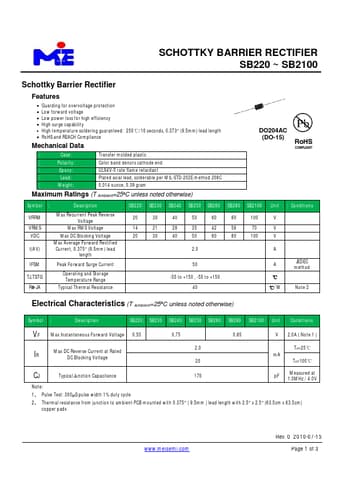

SB240 Datasheet Preview — Preview of SB240 PDF

Datasheet Details

Part number:

SB240

Manufacturer:

MEI SEMI

File Size:

226.26 KB

Description:

Schottky barrier rectifier.
