SB220 - SCHOTTKY BARRIER RECTIFIER

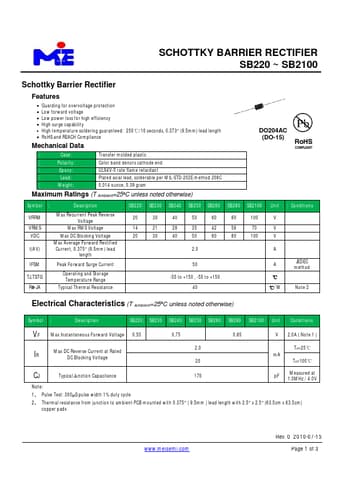

SB220 Datasheet Preview — Preview of SB220 PDF

Datasheet Details

Part number	SB220
Manufacturer	MEI SEMI
File Size	226.26 KB
Description	SCHOTTKY BARRIER RECTIFIER
Datasheet	SB220-MEISEMI.pdf

SB220 Product details

Description

SB220 SB230 SB240 SB250 SB260 VRRM Max Recurrent Peak Reverse Voltage 20 30 40 50 60 VRMS Max RMS Voltage 14 21 28 35 42 VDC Max DC Blocking Voltage 20 30 40 50 60 I(AV) Max Average Forward Rectified Current, 0.375” (9.5mm) lead length 2.0 IFSM Peak Forward Surge Current 50 TJ,TSTG Rθ-JA Operating and Storage Temperature Range Typical Thermal Resis

Features

Guarding for overvoltage protection.
Low forward voltage.
Low power loss for high efficiency.
High surge capability.
High temperature soldering guaranteed: 250℃/10 seconds, 0.373” (9.5mm) lead length.
RoHS and REACH Compliance Mechanical Data Case: Polarity: Epoxy: Lead: Weight: Transfer molded plastic Color band denots cathode end UL94V-0 rate flame retardant Plated axial lead, solderable per MIL-STD-202E method 208C 0.014 ounce, 0.39 g.
