SB250, SB220 SCHOTTKY BARRIER RECTIFIER

SB250 Description

SCHOTTKY BARRIER RECTIFIER SB220 ~ SB2100 Schottky Barrier Rectifier .
SB220 SB230 SB240 SB250 SB260 VRRM Max Recurrent Peak Reverse Voltage 20 30 40 50 60 VRMS Max RMS Voltage 14 21 28 35 42 VDC Max DC Blocking V.

SB250 Features

* Guarding for overvoltage protection
* Low forward voltage
* Low power loss for high efficiency
* High surge capability
* High temperature soldering guaranteed: 250℃/10 seconds, 0.373” (9.5mm) lead length
* RoHS and REACH Compliance Mechanical Data

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB250, SB220. Please refer to the document for exact specifications by model.

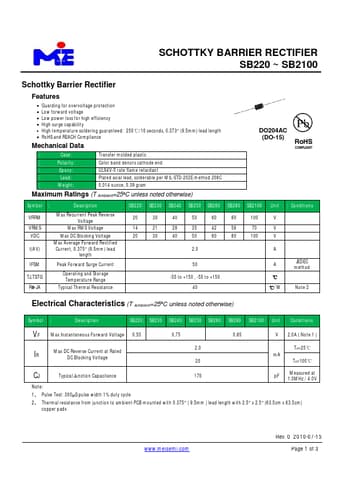

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SB250, SB220
Manufacturer
MEI SEMI
File Size
226.26 KB
Datasheet
SB220-MEISEMI.pdf
Description
SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SB250, SB220.
Please refer to the document for exact specifications by model.
