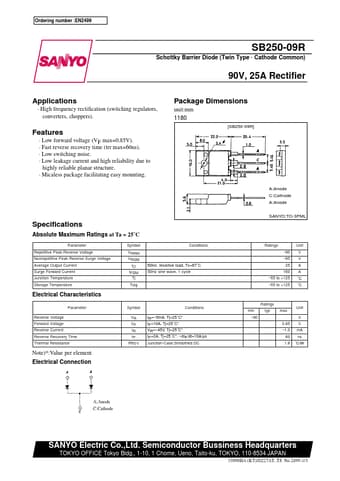

SB250-09R Datasheet, Rectifier, Sanyo Semicon Device

SB250-09R Features

• Rectifier
• Low forward voltage (VF max=0.85V).
• Fast reverse recovery time (trr max=60ns).
• Low switching noise.
• Low leakage current and high reliability due

PDF File Details

Part number:

SB250-09R

Manufacturer:

Sanyo Semicon Device

File Size:

80.44kb

Download:

📄 Datasheet

Description:

90v/ 25a rectifier.

SB250-09R Application

• Applications
• High frequency rectification (switching regulators, converters, choppers). Package Dimensions unit:mm 1180 [SB250-09R] Feat
