SB250-09 Datasheet, Rectifier, Sanyo Semicon Device

SB250-09 Features

  • Rectifier
  • Low forward voltage (VF max=0.85V).
  • Fast reverse recovery time (trr max=60ns).
  • Low switching noise.
  • Low leakage current and high reliability due

PDF File Details

Part number:

SB250-09

Manufacturer:

Sanyo Semicon Device

File Size:

79.26kb

Download:

📄 Datasheet

Description:

90v/ 25a rectifier.

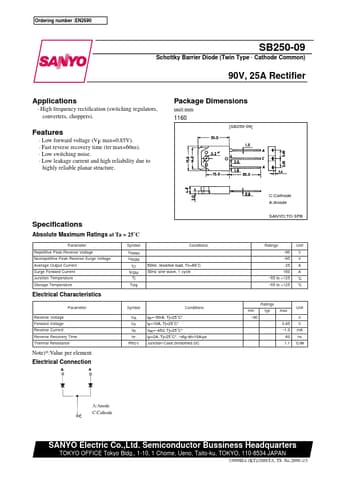

Datasheet Preview: SB250-09 📥 Download PDF (79.26kb)
Page 2 of SB250-09 Page 3 of SB250-09

SB250-09 Application

  • Applications
  • High frequency rectification (switching regulators, converters, choppers). Package Dimensions unit:mm 1160 [SB250-09] Featu
