SB250-05H - 50V/ 25A Rectifier

SB250-05H Description

Ordering number :EN1984 SB250-05H Schottky Barrier Diode (Twin Type * Cathode Common) 50V, 25A Rectifier Applications * High frequency recti.

SB250-05H Features

* Low forward voltage (VF max=0.55V).
* Fast reverse recovery time (trr max=90ns).
* Low switching noise.
* Low leakage current and high reliability due to highly reliable planar structure. C:Cathode A:Anode SANYO:TO-3PB Specifications Absolute Maximum Ratings at Ta = 25˚C Paramete

📥 Download Datasheet

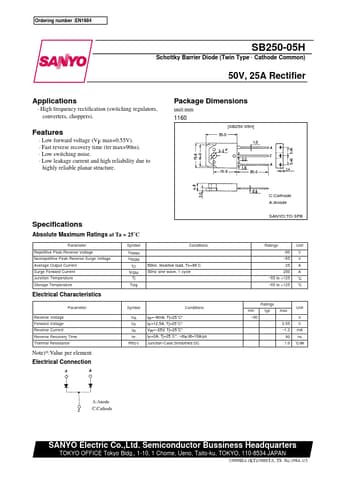

Preview of SB250-05H PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SB250-05H
Manufacturer
Sanyo Semicon Device
File Size
79.96 KB
Datasheet
SB250-05H_SanyoSemiconDevice.pdf
Description
50V/ 25A Rectifier
