1N4007W

SURFACE MOUNT GENERAL PURPOSE SILICON RECTIFIERS

1N4007W Features

* ▪ For surface mounted applications ▪ Low profile package ▪ Glass Passivated Chip Juntion ▪ Ideal for automated placement ▪ Lead free in comply with EU RoHS 2011/65/EU directives PIN DESCRIPTION 1 Cathode 2 Anode MECHANICAL DATA ▪ Case: SOD-123FL ▪ Terminals: Solderable per MIL-STD-750, Method 2026

1N4007W General Description

1 Cathode 2 Anode MECHANICAL DATA ▪ Case: SOD-123FL ▪ Terminals: Solderable per MIL-STD-750, Method 2026 ▪ Approx. Weight:15mg 0.00048oz 12 Top View Marking Code: A1-A7 Simplified outline SOD-123FL and symbol Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unle.

1N4007W Datasheet (318.70 KB)

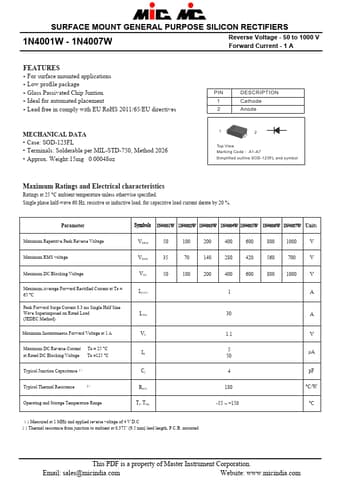

Preview of 1N4007W PDF

Datasheet Details

Part number:

1N4007W

Manufacturer:

MIC

File Size:

318.70 KB

Description:

Surface mount general purpose silicon rectifiers.
