1N4942 - FAST RECOVER RECTIFIER

1N4942 Description

1N4942 THRU 1N4948 FAST RECOVER RECTIFIER VOLTAGE RANGE CURRENT 200 to 1000 Volts 1.0 Ampere .

1N4942 Features

* Low coat construction
* Fast switching for high efficency.
* Low reverse leakage
* High forward surge current capability
* High temperature soldering guaranteed: 260℃/10 secods/.375”(9.5mm)lead length at 5 lbs(2.3kg) tension MECHANICAL DATA
* Case: T

📥 Download Datasheet

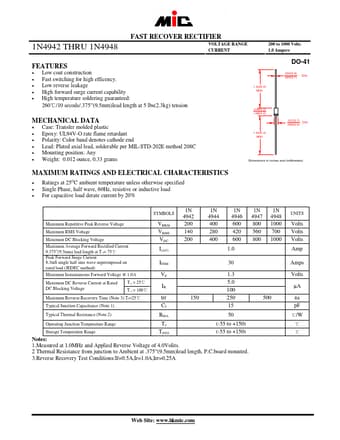

Preview of 1N4942 PDF
datasheet Preview Page 2

Datasheet Details

Part number
1N4942
Manufacturer
MIC
File Size
59.16 KB
Datasheet
1N4942-MIC.pdf
Description
FAST RECOVER RECTIFIER
