2W01M, 2W005M Datasheet - MIC

2W01M, 2W005M, SINGLE-PHASE BRIDGE RECTIFIER

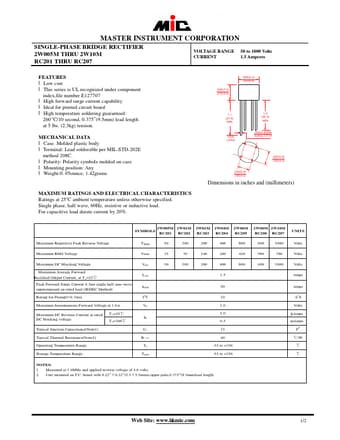

MASTER INSTRUMENT CORPORATION SINGLE-PHASE BRIDGE RECTIFIER 2W005M THRU 2W10M RC201 THRU RC207 VOLTAGE RANGE 50 to 1000 Volts CURRENT 1.5 Amperes .

2W005M-MIC.pdf

2W01M Datasheet Preview — This datasheet PDF includes multiple part numbers: 2W01M, 2W005M. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

2W01M, 2W005M

Manufacturer:

MIC

File Size:

115.74 KB

Description:

SINGLE-PHASE BRIDGE RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: 2W01M, 2W005M.
Please refer to the document for exact specifications by model.

Features

* l Low cost l This series is UL recognized under component index,file number E127707 l High forward surge current capability l Ideal for printed circuit board l High temperature soldering guaranteed: 260 oC/10 second, 0.375”(9.5mm) lead length at 5 lbs. (2.3kg) tension. MECHANICAL DATA l Case: Molded
