2W08M

SINGLE-PHASE BRIDGE RECTIFIER

2W08M Features

* l Low cost l This series is UL recognized under component index,file number E127707 l High forward surge current capability l Ideal for printed circuit board l High temperature soldering guaranteed: 260 oC/10 second, 0.375”(9.5mm) lead length at 5 lbs. (2.3kg) tension. MECHANICAL DATA l Case: Molded

2W08M Datasheet (115.74 KB)

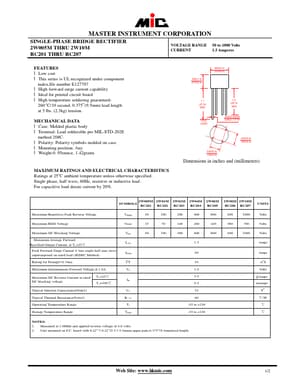

Preview of 2W08M PDF

Datasheet Details

Part number:

2W08M

Manufacturer:

MIC

File Size:

115.74 KB

Description:

Single-phase bridge rectifier.
MASTER INSTRUMENT CORPORATION SINGLE-PHASE BRIDGE RECTIFIER 2W005M THRU 2W10M RC201 THRU RC207 VOLTAGE RANGE 50 to 1000 Volts CURRENT 1.5 Amperes .
