GBU6M, GBU6A GLASS PSSIVATED SINGLE-PHASE BRIDGE RECTIFIER

GBU6M Description

GLASS PSSIVATED SINGLE-PHASE BRIDGE RECTIFIER GBU6A THRU GBU6M VOLTAGE RANGE CURRENT 50 to 1000 Volts 6.0 Amperes .

GBU6M Features

* Plastic package has Underwriters Laboratory Flammability Glassification 94V-0
* Ideal for printed circuit boards
* Glass passivated chip junctions
* High surge current capability
* High temperature soldering guaranteed 260℃/10 seconds, 0.375”(9.5mm) lead len

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GBU6M, GBU6A. Please refer to the document for exact specifications by model.

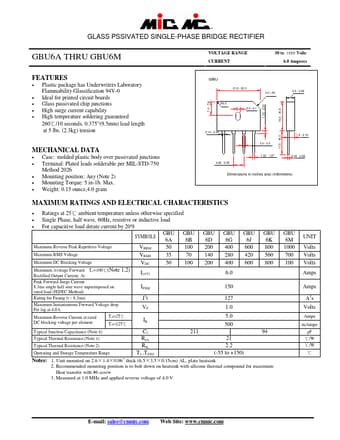

datasheet Preview Page 2

Datasheet Details

Part number
GBU6M, GBU6A
Manufacturer
MIC
File Size
59.85 KB
Datasheet
GBU6A-MIC.pdf
Description
GLASS PSSIVATED SINGLE-PHASE BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: GBU6M, GBU6A.
Please refer to the document for exact specifications by model.
