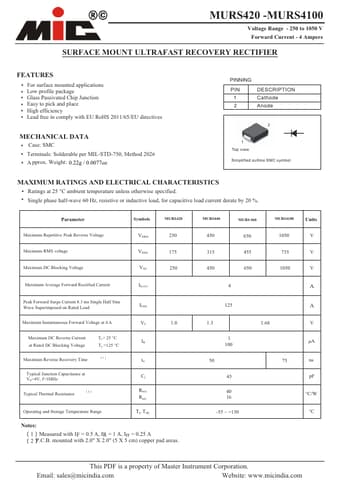

MURS4100 Surface Mount Ultrafast Recovery Rectifier

1 Cathode 2 Anode 2 1 Top View Simplified outline SMC symbol 0$;,0805$7,1 *6$1'(/(&75,&$/&+$5$&7(5,67,&6 ƒ 5DWLQJVDW *&DPELHQWWHPSHUDWXUHXQOHVVRWKHUZLVHVSHFLILHG ƒ 6LQJOHSKDVHKDOIZDYH+]UHVLVWLYHRULQGXFWLYHORDGIRUFDSDFLWLYHORDGFXUUHQWGHUDWHE Paramet.
08560856 9ROWDJH5DQJHWR9 )RUZDUG&XUUHQW $PSHUH 685)$&(028178/75$)$675(&29(5<5(&7,),(5 )($785(6 ƒ )RUVXUIDFHPRXQWHGDSSOLFDWLRQV ƒ/RZSURILOHSDFNDJH ƒ ODVV3DVVLYDWHG&KLS-XQFWLRQ ƒ(DVWRSLFNDQGSODFH ƒ+LJKHIILFLHQF ƒ/HDGIUHHLQFRPSOZLWK(85R+6(8GLUHFWLYHV 0(&+$1,&$/'$7$ ƒ &DVH60& ƒ7HUPLQDOV6ROGHUDEOHSHU0,/67'0HWKRG ƒ $ SSUR[:HLJKWJR] PINNING PIN D.

MURS420-MIC.pdf

This datasheet PDF includes multiple part numbers: MURS4100, MURS420. Please refer to the document for exact specifications by model.
MURS4100 Datasheet Preview Page 2 MURS4100 Datasheet Preview Page 3

Datasheet Details

Part number:

MURS4100, MURS420

Manufacturer:

MIC

File Size:

78.65 KB

Description:

Surface mount ultrafast recovery rectifier.

Note:

This datasheet PDF includes multiple part numbers: MURS4100, MURS420.
Please refer to the document for exact specifications by model.
